Compact Structure Track Mounted Drill Cross-country Low Failure Rate

Name: Compact Structure Track Mounted Drill Crosscountry Low Failure Rate
Brand: Shitan
Price: 1 USD

Quality Compact Structure Track Mounted Drill Cross-country Low Failure Rate for sale

Brand Name : Shitan

Model Number : 200

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C,T/T,Western Union

Supply Ability : 50 sets per month

Delivery Time : 5-8 work days

Packaging Details : Plastic film and Standard export wooden box

Product name : Crawler drilling rig

Track size : 2.3 * 1.65m, grounding length 1.6m

Track specifications : 350 * 90 * 54

Platform size : 3.3 * 1.85m

Tower height : 6.5m

Load capacity : 476, 137, 191, 339, 612 r/min

Reverse rotation speed : 33, 145 r/min

Dimensions (diesel engine model) : 1790 × 1100 × 1500 mm

Contact Now

Wendeng crawler drilling rig
Wendeng drilling rig is a vertical axis core drilling rig produced in Wendeng area, Shandong Province. It belongs to the exploration equipment of medium and shallow hole engineering and is known for its simple structure, durability, and high cost-effectiveness. It is widely used in geological exploration, water wells, and foundation engineering.

Technical Specifications

Attribute	Value
Product Name	Crawler Drilling Rig
Drilling Way	Rotary
Geological Adaptation	Soil, Rock, Hard Rock
Usage	Soil Sample
Track Machine Size	3300mm * 1850mm * 2000mm
Track Specifications	350 * 90 * 54
Tower Height	6500mm
Exploration Hole (50mm Drill Pipe)	Opening: 150mm, Final: 91mm, Depth: 240m
Water Well Hole (50mm Drill Pipe)	Opening: 325mm, Final: 219mm, Depth: 120m
Basic Hole (60mm Drill Rod)	Opening/Final: 600mm, Depth: 60m
Vertical Shaft Speed (Forward Rotation)	1100 r/min (High Speed Gear)
Maximum Torque	400 N·m
Electric Motor	15kw
Diesel Engine	1115
Dimensions	1800 * 800 * 1200 mm
Whole Machine Weight	750 kg

Main application scenarios

Geological exploration: core drilling, mineral survey, engineering geological sampling (coalfield, metallurgy, hydrology, etc.).
Water well engineering: civil/industrial water wells, drought resistant wells, with a diameter of 100-300mm and a depth of ≤ 240m.
Basic engineering: building pile foundation, roadbed reinforcement, slope anchoring holes, concrete coring (highway/dam).

Summary of Core Advantages

✅ Durable and reliable: mainly mechanical transmission, low failure rate, and low maintenance cost.
✅ Easy to operate: centralized handle, hydraulic input, easy for beginners to pick up.
✅ Strong adaptability: interchangeable drill bits/drilling towers to meet the needs of exploration, water wells, and pile foundations.
✅ High cost-effectiveness: affordable in price among devices of the same depth, with a large market share and easy to purchase accessories.

General Applications

Geological Survey: Core sampling and stratigraphic testing for infrastructure projects
Well Drilling: Civil drinking water wells, farmland irrigation wells, mountainous deep wells, shallow geothermal wells
Mining Engineering: Mine water exploration, gas drainage, blasting holes, slope support anchor holes
Slope and Foundation Pit Support: Mountain slope protection, roadbed slope, building foundation pit anchor systems
Municipal Infrastructure: Pipe network drilling, foundation reinforcement, grouting holes, geological monitoring
Complex Terrain: Mountainous areas, forests, muddy terrain, steep slopes requiring self-guided transition operations
Other Fields: Photovoltaic power plant pile foundations, wind power foundation surveys, geological hazard control

Product Gallery

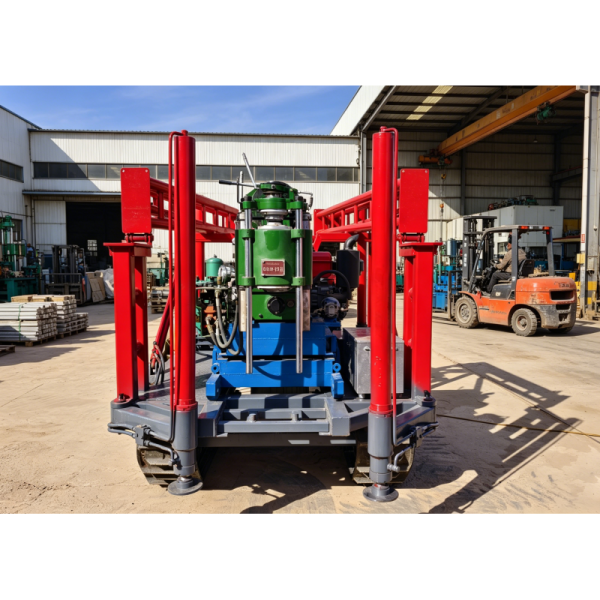

Compact Structure Track Mounted Drill Cross-country Low Failure Rate

Compact Structure Track Mounted Drill Cross-country Low Failure Rate Images
